Turnkey solutions: supply, installation, testing and commissioning

Service & Product

Home›Business Area›Service & Product

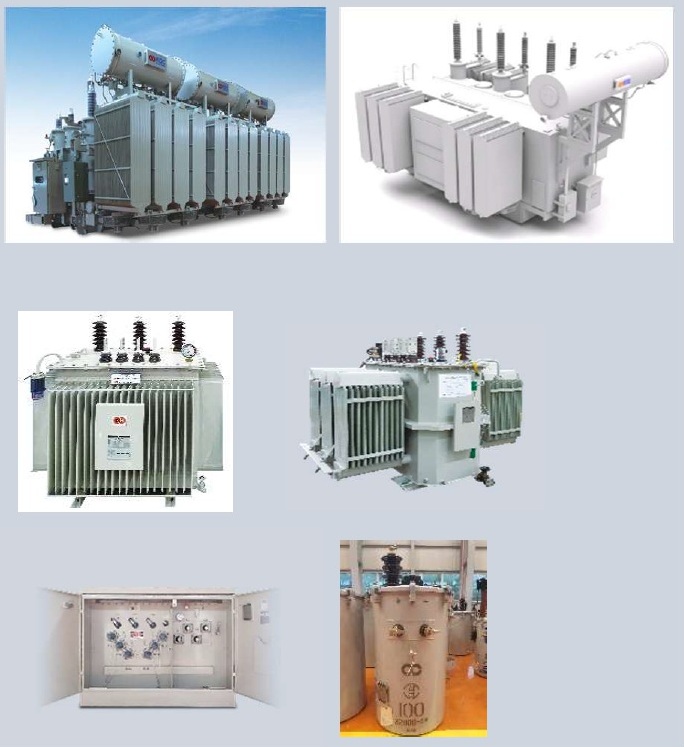

High Voltage Transformers

2 UNITS

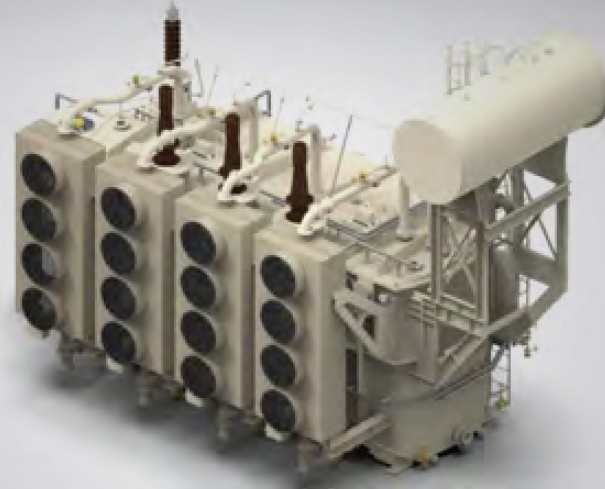

Power Transformer ( ~ 765kV )

Power Transformer ( ~ 765kV )

  • Rated Voltage Up to 765kV

Applied Standard

  • International Standard: IEC, ISO
  • National Standard: KS, JEC, ANSI, BS, GOST, CSA
  • Association Standard: KMC, ES, NEMA, TR2, ANSI (IEEE), JEMA

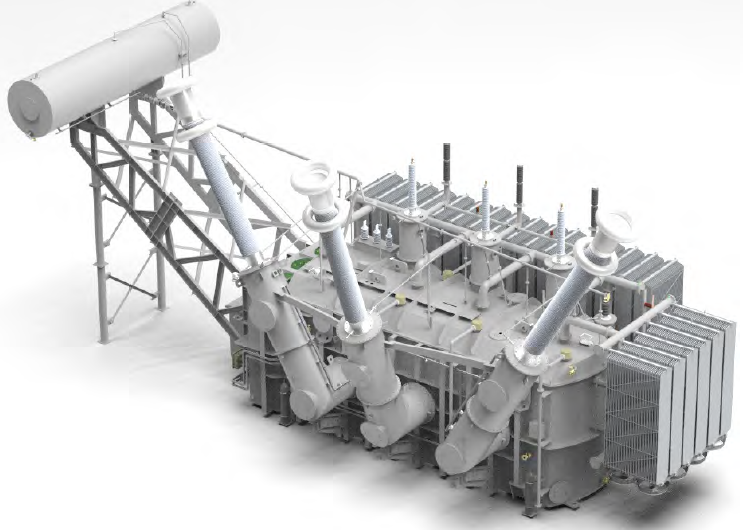

Power Transformer ( ~ 345kV )

Power Transformer ( ~ 345kV )

  • Rated Voltage Up to 345kV

Applied Standard

  • International Standard: IEC, ISO
  • National Standard: KS, JEC, ANSI, BS, GOST, CSA
  • Association Standard: KMC, ES, NEMA, TR2, ANSI (IEEE), JEMA

Distribution Transformer

4 UNITS

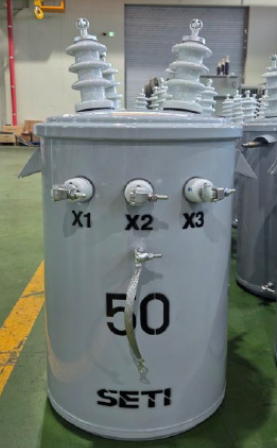

Pole mounted type

Pole mounted type

KVA RATING

  • 10 through 833 kVA

VOLTAGE RATING

  • 34,500 GrdY / 19,920 V (up to 170 kV BIL)

FEATURES

  • Conventional, Step-down, Single/Two-bushing, GrdY

OPTIONS

  • Mineral Oil or Natural Ester (Vegetable Oil) fluid
  • Mild Steel or 304 Series Stainless Steel tank

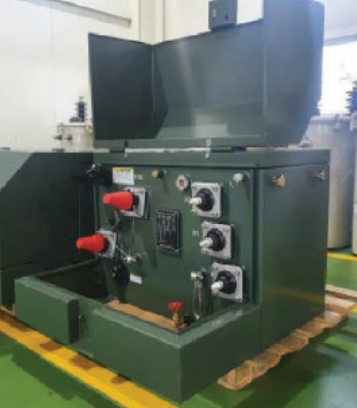

Pad mounted type

Pad mounted type

KVA RATING

  • 15 through 833 kVA (Single Phase)

VOLTAGE RATING

  • 34,500 GrdY / 19,920 V (up to 170 kV BIL)

FEATURES

  • Loop/Radial feed, Step-down, 2/4-position Loadbreak Switches, Bay-O-Net

OPTIONS

  • Mineral Oil or Natural Ester (Vegetable Oil) fluid
  • Mild Steel or 304 Series Stainless Steel tank

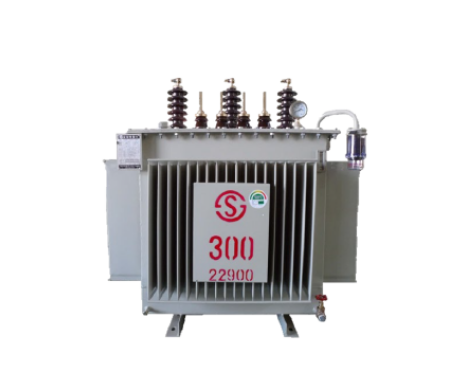

Distribution Transformers

Distribution Transformers

KVA RATING

  • 50 kVA through 250 kVA

VOLTAGE RATING

  • 30 kV / 0.42 kV

FEATURES

  • Step-down

OPTIONS

  • Mineral Oil or Natural Ester (Vegetable Oil) fluid
  • Mild Steel or 304 Series Stainless Steel tank

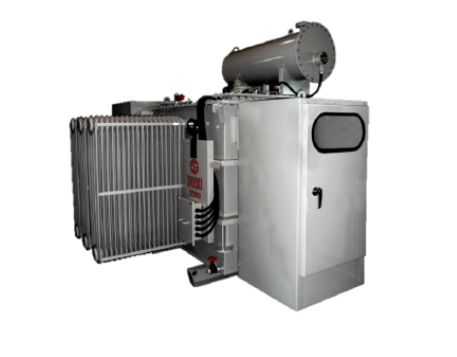

Power Transformer

Power Transformer

KVA RATING

  • 50 kVA through 10 MVA

VOLTAGE RATING

  • 34,500 GrdY / 19,920 V (up to 170 kV BIL)

FEATURES

  • Step-down

OPTIONS

  • Mineral Oil or Natural Ester (Vegetable Oil) fluid
  • Mild Steel or 304 Series Stainless Steel tank

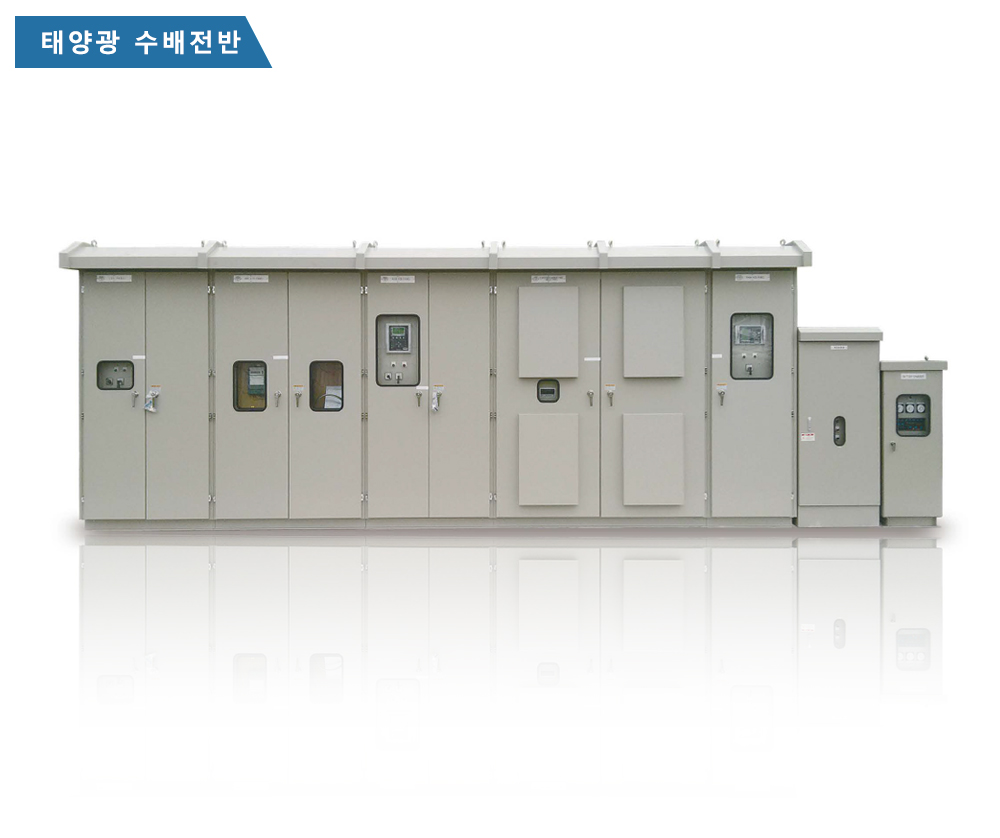

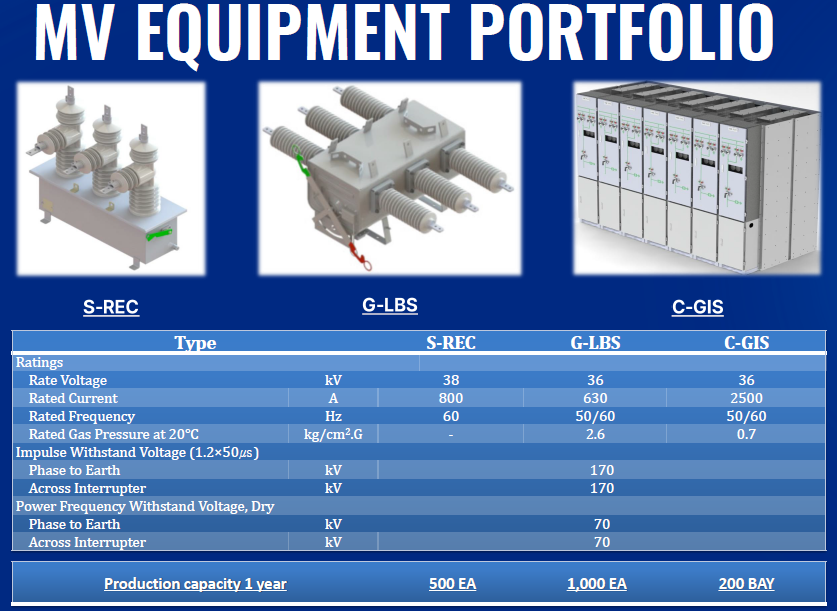

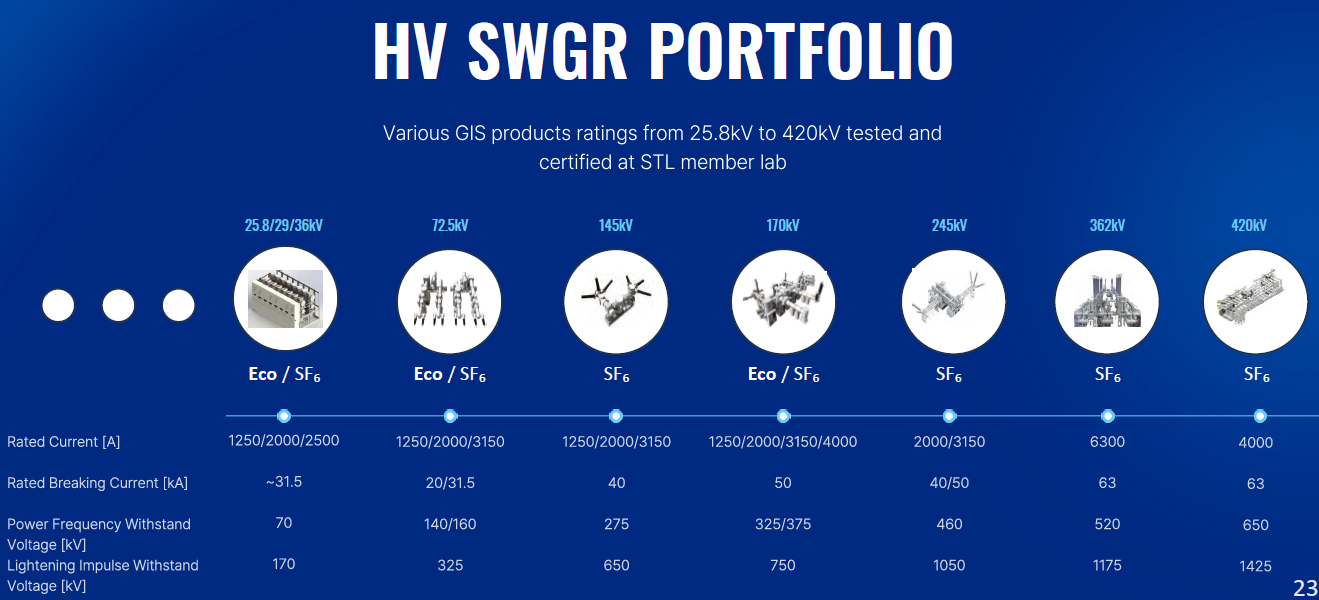

Switch Gear

2 UNITS
Switch Gear

Switch Gear

Switch Gear

Switch Gear

Power Transmission

4 UNITS

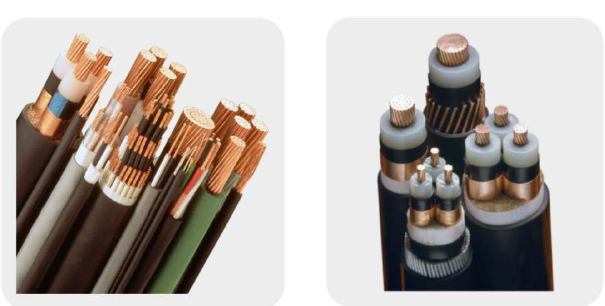

Power & Control Cables (UP TO 220KV)
Power cables ( Overhanging / Under ground / Sea )

Power & Control Cables (UP TO 220KV)

  • XLPE Insulated Power Cable
  • Low-smoke & Zero Halogen Cable
  • Lead Sheathed Cable
  • EPR Insulated Cable
  • Silicone Insulated Cable
  • Nylon Sheathed Cable

Certificate

  • KEMA type test certified ( 0.6/1kV, 33kV, 132kV, 220kV )
  • UL ( all the products )
  • CE ( ready for Eca grade, but to prepare depending on project requirement )

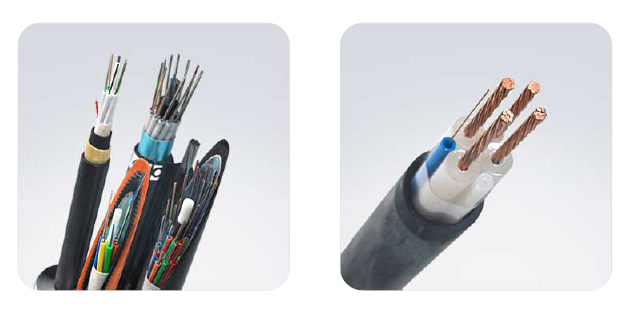

Fiber Optic Cables
Telecommunication cables

Fiber Optic Cables

  • Fiber Optics
  • Fiber Optic cable
  • Hybrid / Composite cable
  • Optical apparatus
  • Optical closure

Certificate

  • KEMA type test certified ( 0.6/1kV, 33kV, 132kV, 220kV )
  • UL ( all the products )
  • CE ( ready for Eca grade, but to prepare depending on project requirement )

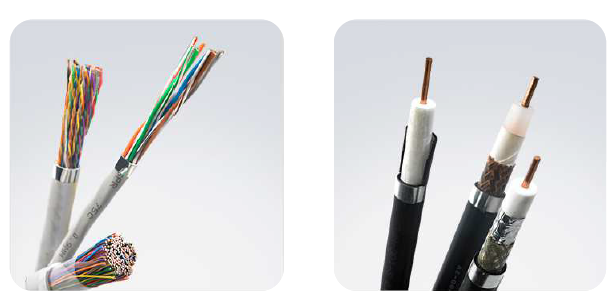

Communication Cables
Telecommunication cables

Communication Cables

  • LAN cable (UTP, FTP)
  • Local telecommunication cable
  • Stalpeth cable
  • CPEV cable
  • Self support cable
  • CATV coaxial Cable
  • Screened cable
  • LAN component

Certificate

  • KEMA type test certified ( 0.6/1kV, 33kV, 132kV, 220kV )
  • UL ( all the products )
  • CE ( ready for Eca grade, but to prepare depending on project requirement )

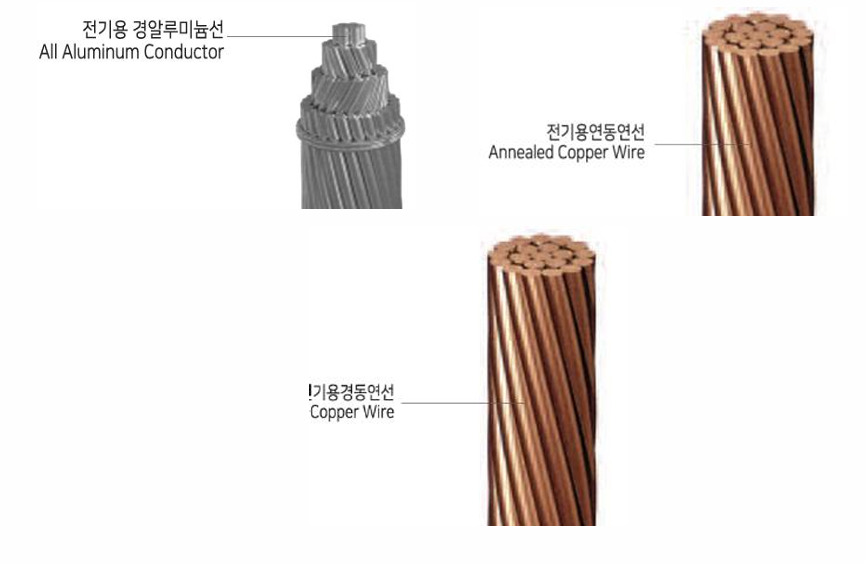

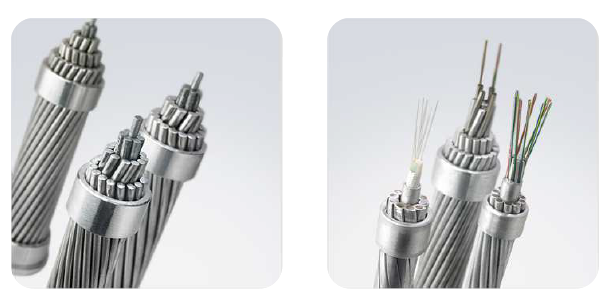

Rod / Aerial Cables
Power cables ( Overhanging / Under ground / Sea )

Rod / Aerial Cables

  • SCR
  • ACSR
  • TACSR
  • STACIR
  • ACSR / AW
  • OPGW

Certificate

  • KEMA type test certified ( 0.6/1kV, 33kV, 132kV, 220kV )
  • UL ( all the products )
  • CE ( ready for Eca grade, but to prepare depending on project requirement )
